MODERNIZATIONS

MODERNIZATION

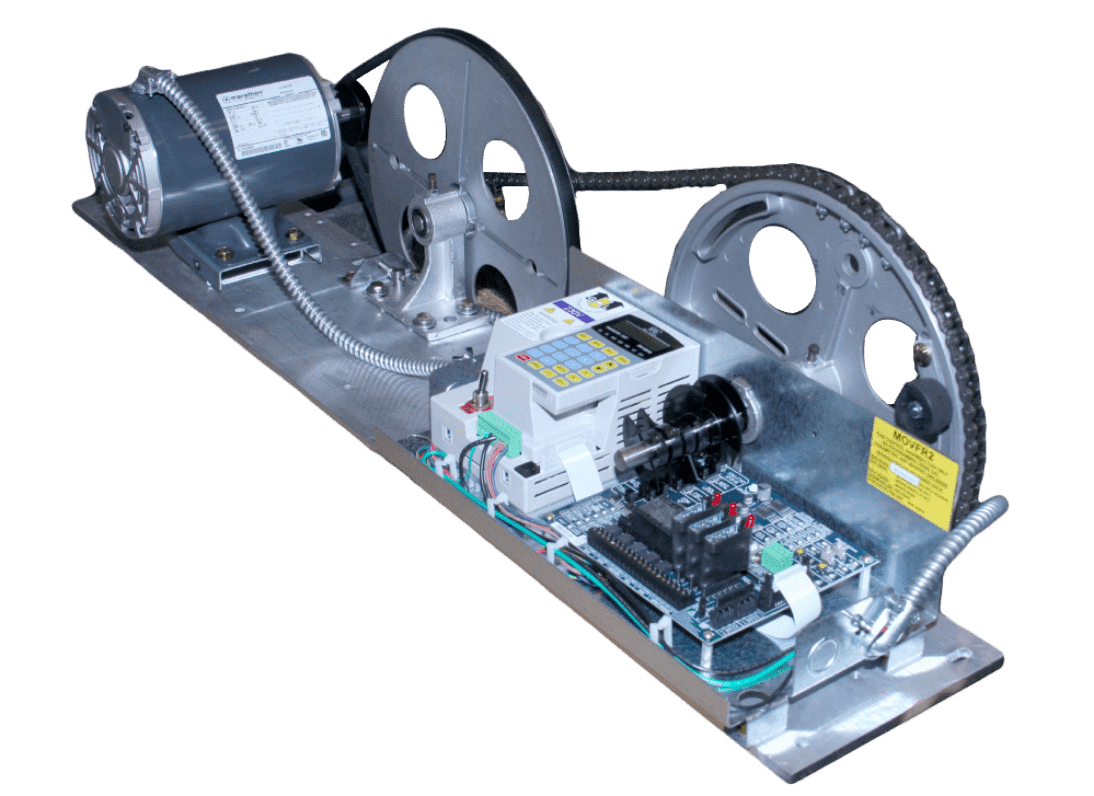

MOVER DOOR OPERATOR

G.A.L. door operators are available for left and right hand doors (center parting doors use a variation of the left hand operator). To determine the hand of the door, stand in the lobby facing the elevator doors. If the door closes to the left, it is a left hand door. If the door closes to the right, it is a right hand door.

MOVFR Door Operator


Elevator Motor Engine

MODERNIZATION

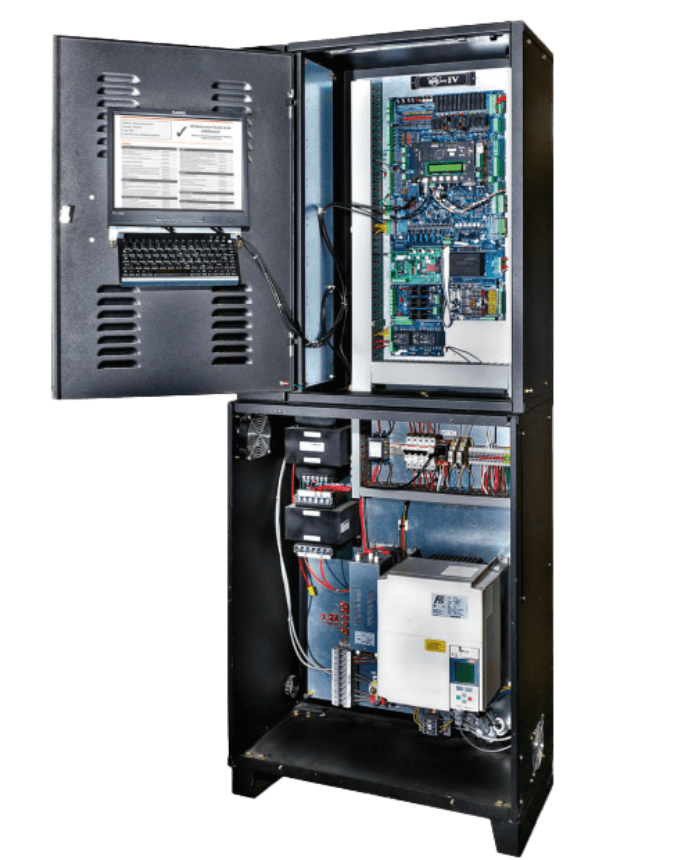

GALAXY-IV CONTROLLER

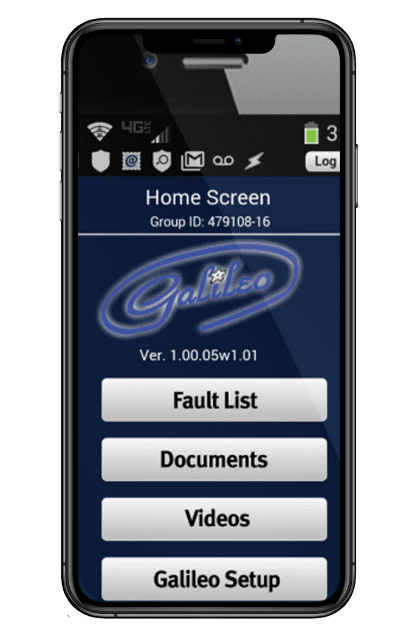

If you’ve ever had to do on-site troubleshooting you may have found yourself facing some tough questions with no easy way to get answers. Fortunately that’s no longer an issue since our GALaxy IV Controller provides a secure built-in Wi-Fi link. GALaxy IV is equipped with all you need to diagnose a problem.



MODERNIZATION

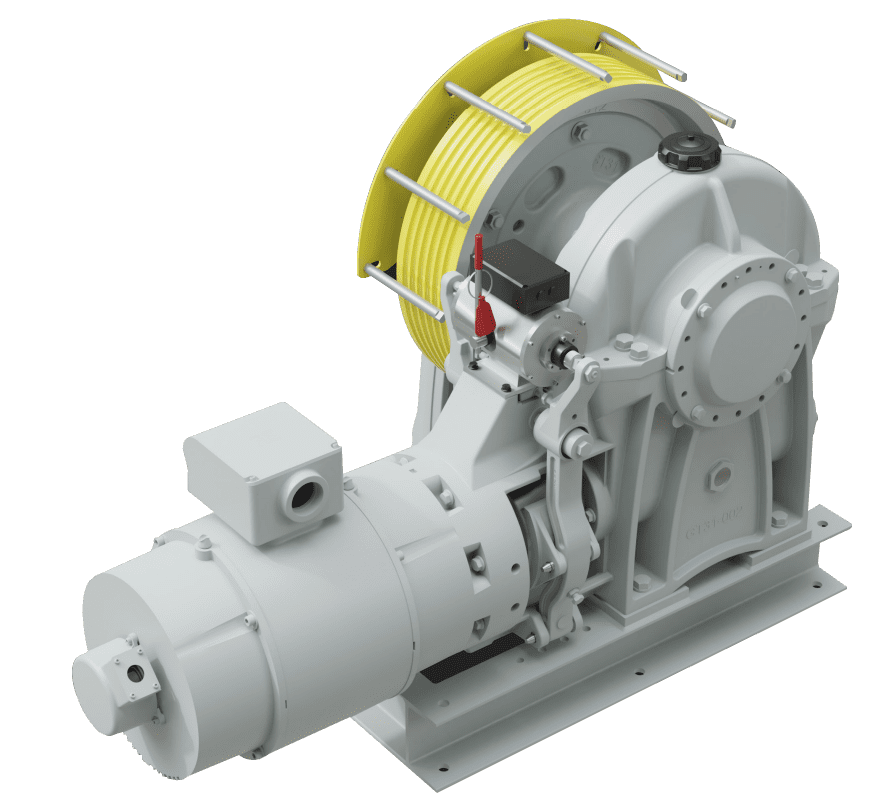

GT#1 GEARED TRACTION MACHINE

Ideal for low to mid-rise traction elevator applications for new construction and modernization projects

GT31 Geared Traction Machine



POWERFUL, COMPACT & EASY TO INSTALL

BENEFITS

• Easy disassembly and reassembly
• Eliminates machine room access limitations
• Simple motor coupling and brake adjustments
• Compact footprint; fits through 29.5” doors
• Easy installation, adjustments and preventative maintenance
• Flange mount motors dismount easily and simplify costly motor alignment


OPTIONAL FEATURES

Traction wheel rope retainer
• Machine guarding with rope guard
• Basement set applications
• Overhead deflector applications
• Standard or seismic frame isolation
• Machine block-up assemblies
• Maximum sheave shaft load 25,000 lbs


STANDARD FEATURES

Available with either a 26-in. or 30-in. sheave
• Standard NEMA C-face motor interface
• Designed for machine room applications with VVVF A/C controls
• Operates at speeds of 100 to 500 ft/min (0.51 to 2.54m/sec) and capacities of 3,000 to 6,000 lbs (1,361 to 2,722 kg) with 1:1 roping and 3,000 to 12,000 lbs (1,361 to 5,554 kg) with 2:1 roping
• Smaller universal-fabricated steel base with integrated Rope Gripper® mounting
• LH and RH configurations
• Quiet braking solenoid
• Sealed bearings for reduced maintenance
• Enhanced bronze gear material
• Width: 28.85”/733mm
• Height 43.3”/105mm
• Length 65.5”/166.4mm
• Flange mounted motor for easy removal/replacement

Controller Replacements

Door operators

Door Protectors

Machines

Cab Upgrades

Car Stations

Valves

Cylinders
